2-520083-2
Manufacturer:
TE Connectivity
Mfr.Part #:
2-520083-2
Datasheet:
Description:

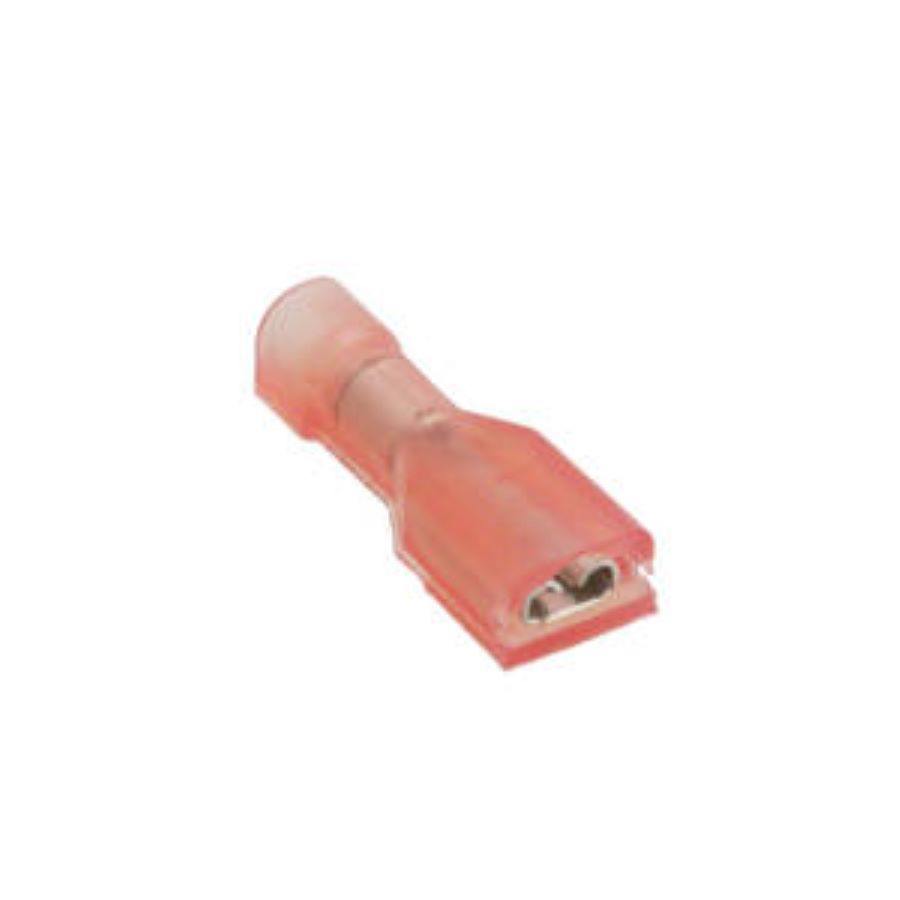

Terminals Free Hanging 22 AWG to 18 AWG Female
| Parameter | Value |
|---|---|
| Length | 18.67 mm |
| Material | Brass |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Receptacle |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Red |
| Gender | Female |
| Wire/Cable Gauge | 22 AWG to 18 AWG |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Plating | Tin |
| Termination Style | Crimp |
| Mating Tab Width | 2.8 mm |
| Tab Thickness | 510 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 2.8 mm x 0.51 mm |
Stock: 18540
Distributors
pcbx
pcbxUnit Price$0.63000
Ext.Price$0.63000
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.63000 | $0.63000 |
| 10 | $0.31500 | $3.15000 |
| 50 | $0.24231 | $12.11550 |
| 100 | $0.18639 | $18.63900 |
| 500 | $0.14338 | $71.69000 |
| 1000 | $0.11029 | $110.29000 |
| 3000 | $0.11029 | $330.87000 |
| 5000 | $0.10476 | $523.80000 |
| 10000 | $0.09951 | $995.10000 |
| 30000 | $0.09452 | $2835.60000 |
| 50000 | $0.08977 | $4488.50000 |
